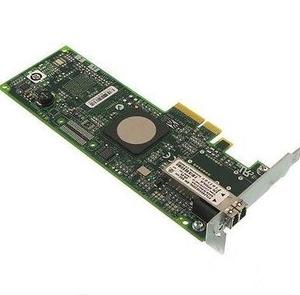

Контроллер HP LPE1150 4Gb PCIe Host Bus Adapter Emulex LP P/N: A8002A, 397739-001

Standards

• ANSI Fibre Channel: FC-PH-3, FC-PI-2, FC-FS, FC-AL-2, FC-GS-4, FC-FLA, FC-PLDA, FC-SP, FC-TAPE, FCP-2, and RFC 2625 (IP over FC)
• PCI Express base spec 1.0a
• PCI Express card electromechanical spec 1.0a
• Fibre Channel class 2 and 3
• PHP hot plug-hot swap

Architecture

• Single-channel
• 4Gbps, 2Gbps or 1Gb/s FC Link speeds automatically detected
• Integrated data buffer and code space memory

Comprehensive OS Support

• Windows
• Linux
• VMware
• OpenVMS
• Solaris

Hardware Environments

• ProLiant and Integrity

Optical

• Data rates: 1.0625, 2.125 and 4.25Gb/s (auto-detected)
• Optics: Short wave lasers with LC type connector
• Cable:
  • 50/125?m, up to 150 meters at 4Gbps
  • 62.5/125?m, up to 70 meters at 4Gbps

Physical Dimensions

• Short, low profile MD2 form factor card
• 167.64mm x 64.42mm (6.60" x 2.54")
• Standard bracket (low profile available)

Power & Environmental Requirements

• Volts: +3.3
• Operating temperature: 0° to 55°C (32° to 131°F)
• Airflow required: 100 lf/m
• Storage temperature: -40° to 70°C (-40° to 158°F)
• Relative humidity: 5% to 95% non-condensing

Ordering Information

• LPe1150-F4 - Single-channel, embedded multi-mode optic interface

Additional Features

• Emulex LightPulse technology features Frame-level Multiplexing and out-of-order frame reassembly for maximum link utilization.
• End-to-end data protection with hardware parity, CRC, ECC and other advanced error checking and correcting ensure that data is safe from corruption.
• Detailed real-time event logging and tracing enables quick diagnosis of SAN problems.
• Universal Boot capability allows the appropriate boot environment to be automatically selected for any given OS.
• Strong authentication between host and fabric is based on full Fibre Channel Security Protocol (FC-SP) Diffie-Helmann Challenge Handshake Authentication Protocol (DH-CHAP) compliance.

Software Features

• Emulex feature-rich software simplifies and speeds deployment and device management, while reducing administration costs and protecting your IT investment.
• HBAnyware enables centralized discovery, monitoring, reporting, and management of both local and remote HBAs from a secure remote client. HBAnyware provides in-depth management capabilities including remote firmware and boot code upgrades, beaconing, statistics, and advanced diagnostics. An extensive CLI is available for scripting.
• Emulex management instrumentation is based on Open Management Standards. SMI-S and common HBA API support enable seamless upward integration into enterprise storage and server management solutions.
